Product Description

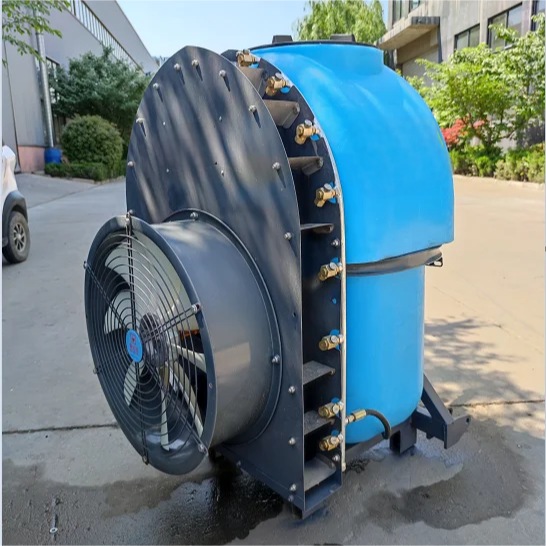

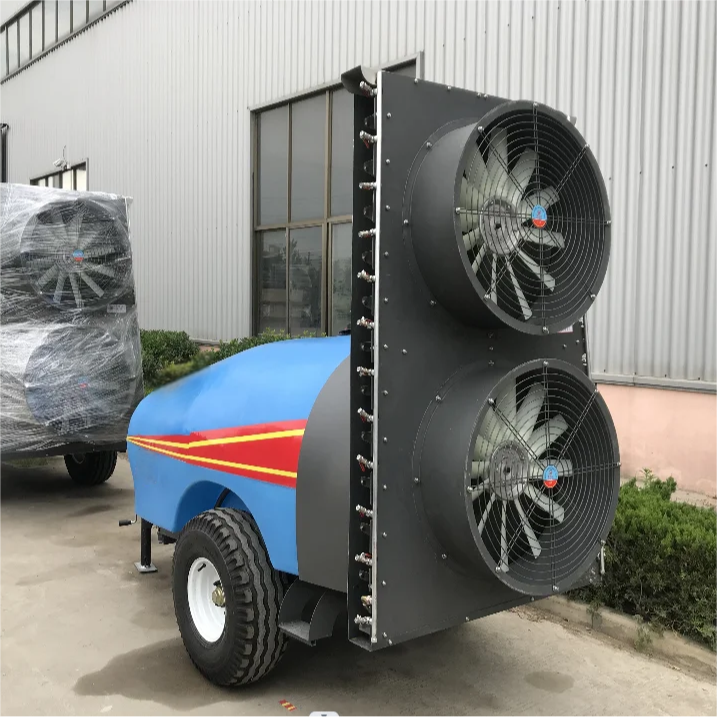

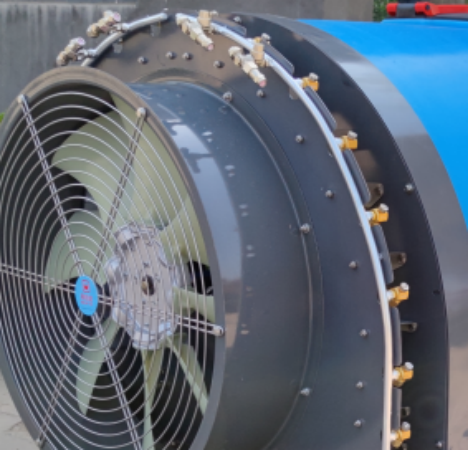

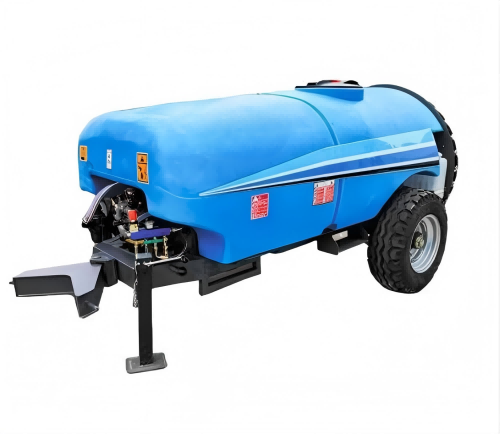

The tractor sprayer are mainly used for orchard prevention and control foliar fertilization, vegetable and flower wrapping, forestry prevention and control of diseases and insects, spraying herbicides before planting in the field, and urban greening and other spraying operations.
The machine.
Product Advantages
Our tractor sprayer has the characteristics of uniform fogging, high production efficiency, strong penetration, low labor intensity, large coverage of liquid medicine, and good adhesion.

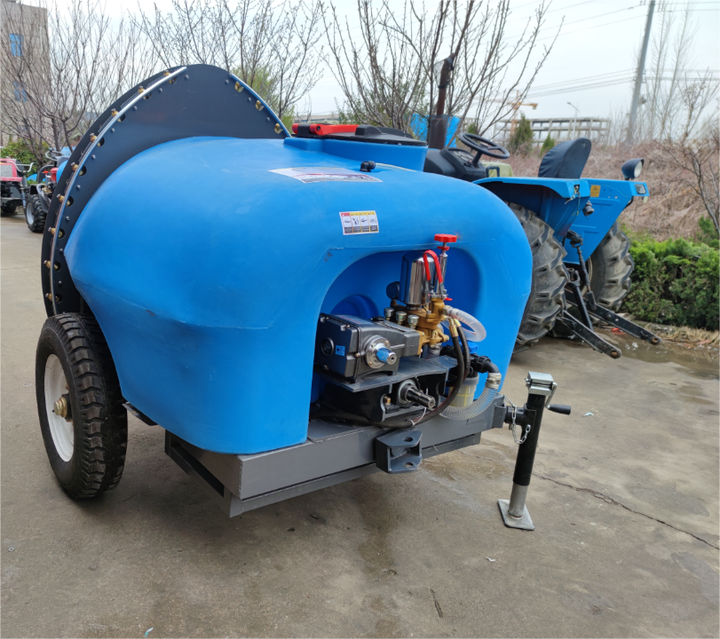

The diaphragm pump adopts imported brands. It works efficiently and lastingly, requires less maintenance frequency and has a long service life.
Product Parameters
| Model | 200 | 400 | 600 | 750 | 1000 | 1300 | 1600 | 2000 |
| Supporting power | 18 HP above | 18 HP above | 20 HP above | 18 HP above | 22 HP above | 22 HP above | 30 HP above | 35 HP above |
| Operating pressure | 1.5-2.5(MPa) | 1.5-2.5(MPa) | 1.5-2.5(MPa) | 1.5-2.5 (MPa) | 1.5-2.5 (MPa) | 1.5-2.5 (MPa) | 1.5-2.5(Mpa) | 1.5-2.5 (MPa) |
| Volume | 200 L | 400 L | 600 L | 750 L | 1000 L | 1300 L | 1600 L | 2000 L |
| Rated speed | 450-550r/min | 450-550r/min | 450-550r/min | 480- 550r/min | 500- 600r/min | 480- 550r/min | 480-550r/min | 500- 600r/min |
| Pump | Diaphragm pump | Diaphragm pump | Diaphragm pump | Diaphragm pump | Diaphragm pump | Diaphragm pump | Diaphragm Pump | Diaphragm pump |
| Flow | 14-60(L/min) | 14-60(L/min) | 14-60(L/min) | 14-60(L/min) | 100(L/min) | 60-140(L/min) | 64-120(L/min) | 64-120(L/min) |
| Stirring method | Backwater stir | Backwater stir | Backwater stir | Backwater stir | Backwater stir | Backwater stir | Backwater Stir | Backwater stir |
| Spray range | 10 m | 10 m | 12 m | 5-6m | 6-10m | 5-6m | 5-6m | 6-8m |
| Nozzle number | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 16 |
| Dimensions(mm) | 860x760x1100 | 1100x950x1100 | 1100x950x1100 | 2200*1000*1300 | 1900*1500*1350 | 2700*1200*1450 | 2700*1450*1500 | 3200*1400*1450 |
| Efficiency | 0.5-0.8acres /barrel | 0.5-0.8acres /barrel | 0.5-0.8acres /barrel | About 4-5 acres /hour | About 5 acres /hour | About 5 acres /hour | About 5 aces/hour | About 5 acres /hour |
| Weight | 160kg | 150kg | 150kg | 288kg | 400kg | 400kg | 480kg | 650kg |
FAQS
Q: What about the delivery time?
A: Within 7-10 days not including the shipping time.
Q: What's your MOQ?
A: 1 set of tractor sprayer.
Q: What's your payment terms?
A: Normally we use T/T, also we accept other payment terms, such as L/C.
